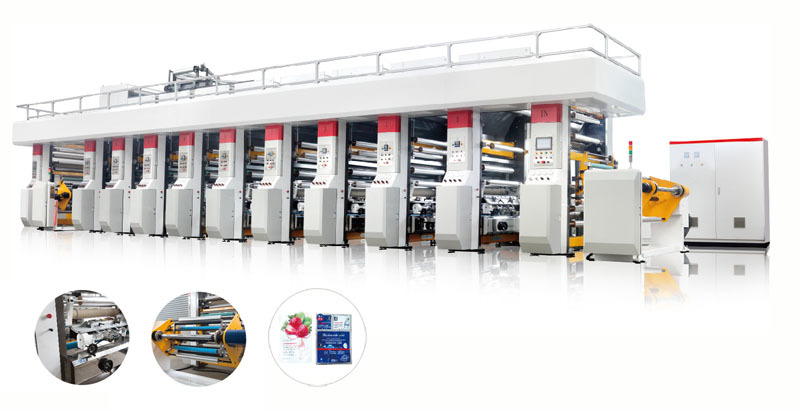

HTL-Y-L Gravure Printing Machine

The company mainly produces: aluminum foil/paper high-speed gravure printing machine, electronic shaft high-speed printing machine, water-based gravure printing machine, dry composite machine, fixed-point coating composite machine, coating machine and other equipment.

Key words:

Printing machine series

Classification:

Printing machine series

Sales Hotline:

86-18015368018

Product Consulting

Related Products

Product Description
Standard model technical parameters
Optional component parameters
Main technical data

◆ Seven motor tension control system(spindle servo motor), do not stop automatic material replacement, material waste is very small, vertical alignment control by automatic alignment system, horizontal alignment by manual adjustment;

◆ The structure of the rotating frame in the form of cross arm, and the loading and unloading of raw materials by means of safety chuck and air expansion shaft;

◆ Unwind shaft max diameter: 600mm;

◆ Rewind shaft max diameter: 600mm;

◆ The printing roller adopts a shaft less pneumatic locking mode, and the printing cots adopts a crank arm structure with a shaft;

◆ The whole wallboard material is cast in high strength castings;

◆ Drying system: The standard configuration is an electric heating system;

◆ The structure of the drying box has a unique energy-saving effect;

◆ Both unwinding and winding units have forward and reverse running functions.
◆ Unwinding or winding unit frame of diamond structure or round structure

◆ Fixed or removable reverse printing device(top mounting or bottom reverse loader structure)

◆ Ink roll structure, and the speed of this device can be independently adjusted

◆ Heat pump drying system, gas enrichment + emission reduction drying system, steam drying system

◆ Ionic wind electrostatic elimination system

◆ Horizontal automatic alignment system

◆ Variable data two-dimensional code printing system

◆ Online quality inspection system

◆ Independent unit fixed point drive control system

Mechanical speed	200m/min
Material length in the drying oven	2000mm
Printing roll diameter range	Φ120-280mm
Standard mechanical width range	850mm 1050mm 1250mm( Customizable)
Range of printed materials	BOPP, PET, OPA and other package materials
